An 8 solar panel series-parallel configuration combines both wiring methods to balance voltage and current output, typically arranged as either two strings of four panels in series (2×4) or four strings of two panels in series (4×2). This hybrid approach addresses a fundamental challenge in photovoltaic system design: optimizing power delivery to inverters and charge controllers while maintaining system safety and efficiency.
Understanding series-parallel configurations is essential for anyone designing small to medium-scale solar installations. When you connect panels in series, voltages add together while current remains constant. In parallel, the opposite occurs: currents combine while voltage stays the same. A What is a PV module produces a specific voltage and current rating, and how you wire eight of them together determines the system’s electrical characteristics and compatibility with downstream equipment.
The 8-panel series-parallel array represents a practical sweet spot for residential installations, off-grid cabins, and commercial applications where space constraints or electrical requirements demand precise voltage and current specifications. A 2×4 configuration doubles the voltage and current compared to a single panel, while a 4×2 setup quadruples voltage but maintains only double the current.
This article examines both configuration patterns in detail, explaining the electrical mechanics behind each approach, comparing their real-world applications, and outlining critical safety considerations. Whether you’re a PV student preparing for certification, a DIY installer planning your first array, or a professional refining your system design skills, mastering series-parallel wiring expands your capability to match solar output precisely to inverter specifications and site-specific electrical demands.
What an 8 Solar Panels in Series Parallel Configuration Means
An 8 solar panels in series parallel configuration is a hybrid electrical architecture that combines both series and parallel wiring methods to connect eight photovoltaic modules into a single functional array. This approach allows system designers to optimize both voltage and current characteristics, creating a balanced electrical profile that matches specific inverter requirements while maintaining system reliability.
In this configuration, the eight panels are divided into multiple series strings, typically two strings of four panels each, or four strings of two panels each, which are then connected in parallel to form the complete array. The series connections within each string increase system voltage, while the parallel connections between strings increase total current output. This dual-layer approach offers flexibility that pure series or pure parallel configurations cannot provide alone.
Understanding the fundamental terminology is essential for grasping how these configurations function:
- Series Connection
- A wiring method where panels connect positive to negative terminal, adding their voltages together while maintaining the same current as a single panel.
- Parallel Connection
- A wiring method where all positive terminals connect together and all negative terminals connect together, adding panel currents while maintaining the same voltage as a single panel.
- String
- A group of solar panels wired in series, forming a single electrical path with cumulative voltage.
- Array
- The complete set of interconnected solar panels that function as a unified power generation system.
- Voltage
- Electrical pressure measured in volts, which increases when panels connect in series and remains constant when strings connect in parallel.
- Current
- Electrical flow measured in amperes, which remains constant within a series string but increases when multiple strings connect in parallel.
The design rationale behind series-parallel configurations centers on matching the array’s electrical characteristics to downstream equipment while building in redundancy. A pure series configuration of eight panels would produce very high voltage but limited current, potentially exceeding inverter input limits. Conversely, a pure parallel arrangement would generate high current at low voltage, requiring oversized wiring and often falling below minimum inverter operating voltage. The series-parallel hybrid strikes a middle ground, delivering moderate voltage and current levels that align with standard residential inverter specifications while ensuring that partial shading or a single panel failure doesn’t disable the entire system.
How the Configuration Works Electrically
Series Connection Fundamentals
When you connect solar panels in series, you wire the positive terminal of one panel to the negative terminal of the next, creating a chain. This arrangement adds up the voltage of each panel while keeping the current constant at the level of a single panel.
Here’s the electrical behavior: if each panel produces 40 volts and 10 amps, connecting four panels in series yields 160 volts (40V × 4) but maintains 10 amps. The current remains limited by the weakest link in the chain, essentially, electricity can only flow as fast as the most restrictive panel allows.
In an 8-panel configuration, you’ll typically create either two strings of four panels or four strings of two panels, depending on your voltage and current targets. A 2-string setup (four panels per string) generates higher voltage, which works well with many grid-tie inverters that require elevated DC input. A 4-string arrangement (two panels per string) produces lower voltage but offers better performance when partial shading affects the array.
The series connection forms the voltage foundation of your system. You’re stacking electrical pressure while the flow rate stays fixed, a principle that directly shapes how you’ll wire the parallel portion of your array.
Parallel Connection Fundamentals
When multiple series strings are connected in parallel, their currents add together while the system voltage remains equal to the voltage of a single string. If you have two strings of solar panels wired in parallel, and each string produces 40 volts at 8 amps, the combined parallel connection yields 40 volts at 16 amps, doubling your current capacity without changing voltage.
This current-summing characteristic is precisely why parallel connections are valuable in solar arrays. They allow you to increase total power output while keeping voltage within the operating range of your inverter or charge controller. For an 8-panel configuration, connecting multiple series strings in parallel lets you scale up amperage to match your system’s power requirements.
Parallel wiring also provides critical redundancy. If one string experiences shading, soiling, or a panel fault, the other strings continue operating independently. This fault tolerance means a single underperforming panel doesn’t drag down the entire array’s output, a key reliability advantage. Each parallel string functions as a separate current source, so partial system failures have limited impact on overall production.

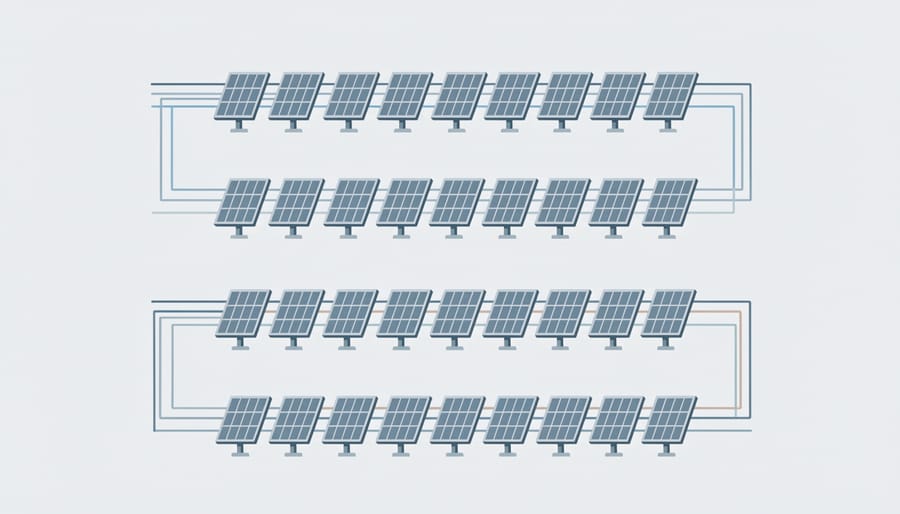

Common 8-Panel Wiring Patterns
When configuring 8 solar panels, two wiring patterns dominate: the 2×4 arrangement and the 4×2 arrangement. Each produces distinct electrical characteristics that shape system compatibility and performance.
The 2×4 configuration (often written as 2S4P) creates two series strings, each containing four panels. If you’re using standard 40V panels, each string delivers approximately 160V at the panel’s rated current, say, 10 amps. Connecting these two strings in parallel maintains that 160V while doubling the current to 20 amps. This high-voltage, moderate-current profile suits string inverters designed for residential systems, minimizing wire gauge requirements for long runs and reducing resistive losses.
The 4×2 configuration (4S2P) flips the ratio: four parallel strings, each with two panels in series. Using the same 40V panels, each string produces 80V at 10 amps. Paralleling four strings keeps voltage at 80V but quadruples current to 40 amps. This lower-voltage, higher-current setup demands heavier wiring and robust connections, yet it offers superior fault tolerance. If one string fails, three remain operational, a meaningful advantage in systems prone to partial shading or where redundancy matters.
The choice hinges on inverter specifications, shading conditions, and voltage requirements. High-voltage 2×4 suits shade-free rooftops with compatible inverters. Low-voltage 4×2 excels where panel-level independence and current capacity drive design decisions. Both configurations deliver identical total power; the difference lies in how voltage and current distribute across the array.
Configuration Types and Component Considerations
2×4 Configuration (Two Strings of Four Panels)
The 2×4 configuration connects eight panels into two parallel strings, with four panels wired in series within each string. This arrangement multiplies the voltage of a single panel by four while doubling the current capacity through parallel connection. For example, four 300W panels rated at 40V and 7.5A each create a series string producing 160V at 7.5A; connecting two such strings in parallel maintains 160V while increasing current to 15A, yielding approximately 2,400W total system capacity.
This high-voltage, lower-current profile suits string inverters designed for residential installations, particularly those requiring 150-200V DC input ranges. The configuration minimizes resistive losses in wiring runs between the array and inverter, making it efficient for installations where panels mount far from the conversion equipment. Advances in module technology have increased per-panel voltage output, allowing fewer panels per string to reach inverter threshold voltages.
Typical residential applications include single-roof-plane installations where all eight panels experience similar sun exposure and shading patterns. The 2×4 arrangement offers straightforward wiring with only one parallel junction point, simplifying combiner box requirements and reducing hardware costs compared to configurations with more parallel strings.
4×2 Configuration (Four Strings of Two Panels)
A 4×2 configuration splits the 8 panels into four parallel strings, each containing two panels wired in series. This arrangement produces lower system voltage but higher current compared to the 2×4 setup, making it particularly advantageous for certain inverter types and environmental conditions.
The primary benefit lies in shading resilience. Because each string operates independently, partial shade affecting one or two panels degrades only that string’s output while the remaining three continue generating at full capacity. Research confirms that series-parallel improves shading tolerance compared to pure series wiring. This configuration also provides built-in redundancy, if one string fails, three-quarters of system capacity remains operational.
However, the 4×2 arrangement requires inverters or charge controllers rated for higher current input, typically demanding heavier gauge wire and larger overcurrent protection devices. The lower voltage may limit compatibility with certain grid-tie inverters designed for higher voltage windows. System design must also account for four separate fusing points and potentially a larger combiner box.
This configuration works well for installations where partial shading is unavoidable, off-grid systems prioritizing reliability, or when matching specific charge controller voltage requirements. Panel technology choice, whether monocrystalline vs poly affects the exact voltage output, but the fundamental electrical behavior remains consistent across cell types.

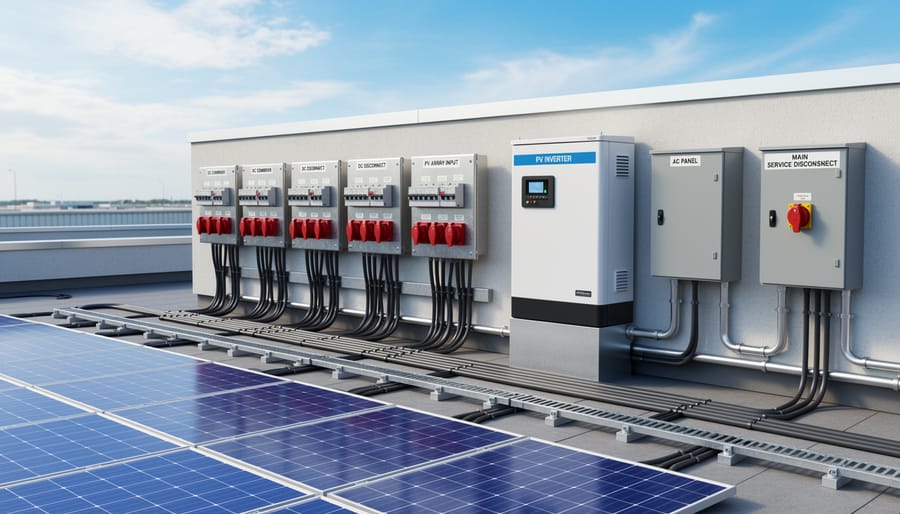

Critical System Components
A series-parallel solar array demands specific hardware to function safely and efficiently. Your component selection depends on the configuration you choose, whether 2×4 or 4×2, since voltage and current characteristics differ markedly between them.
Essential System Components:
- Charge controller or inverter sized to handle total system voltage and current output from all parallel strings
- Combiner box with appropriately rated fuses or circuit breakers to merge parallel strings before they reach the controller
- Individual string fuses (typically 10-15A) to protect each series string and prevent backfeed current
- DC disconnect switch rated for maximum system voltage to safely isolate the array during maintenance
- Wire gauge calculated for maximum current flow and voltage drop, typically 10 AWG for residential arrays but verify with NEC tables
- Grounding equipment including bonding conductors and grounding lugs to prevent electrical hazards

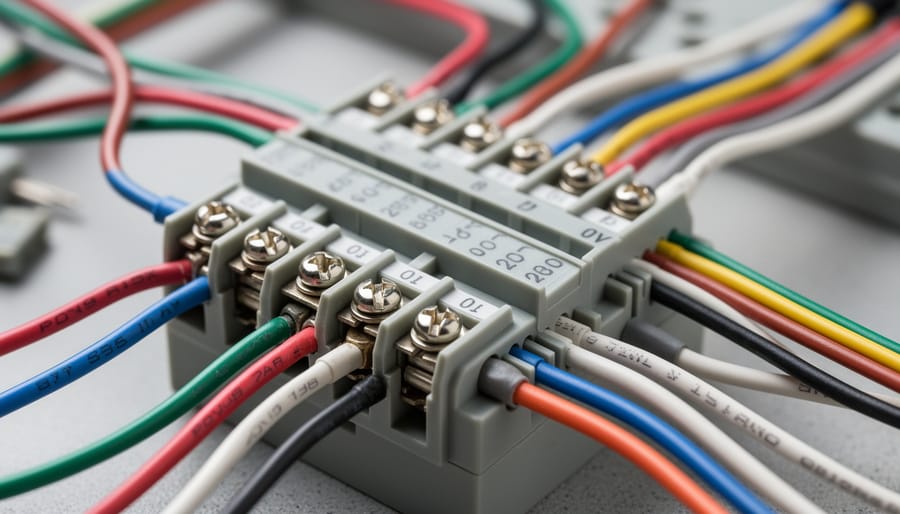

The combiner box serves as the critical junction point where parallel strings meet. Each string needs its own overcurrent protection because if one string fails or develops a short, current from healthy strings can backfeed into it. A 2×4 configuration with higher voltage requires fewer, larger-capacity fuses than a 4×2 setup. Wire sizing matters more in parallel configurations where combined current increases; undersized conductors create voltage drop that robs system efficiency and poses fire risk.
Practical Applications and Use Cases

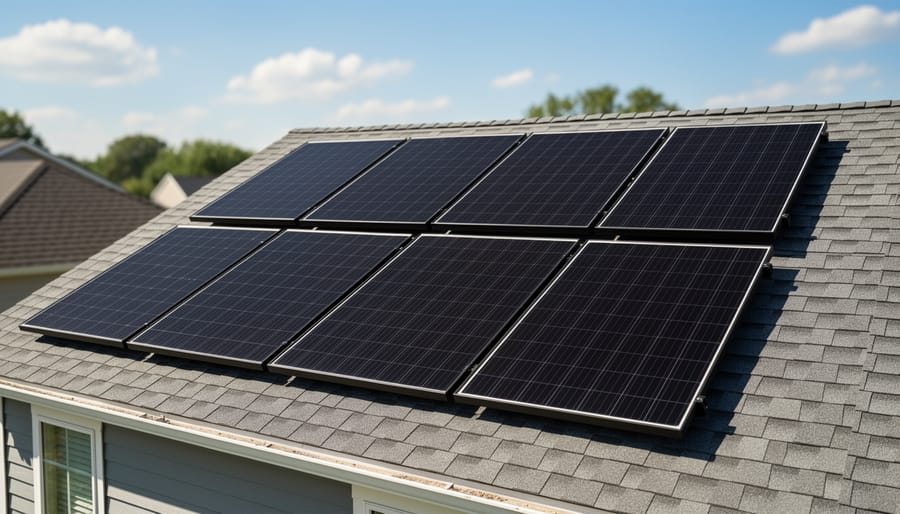

Residential Solar Installations

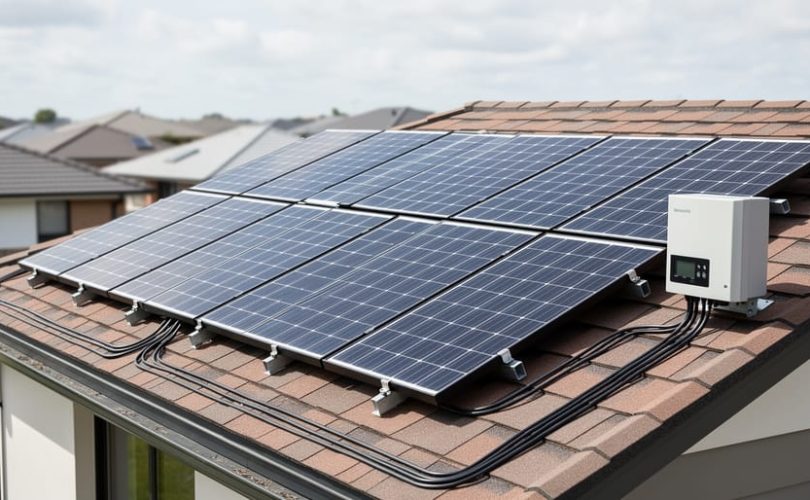

In residential settings, an 8-panel series-parallel configuration typically functions as an entry-level system for homeowners testing solar adoption or working within limited roof space. With modern panels rated between 350-450W, these arrays generate approximately 2.8-3.6 kW of total capacity, enough to offset 30-50% of average household electricity consumption depending on usage patterns and geographic location.
For grid-tied applications, the configuration integrates with string inverters sized to match the array’s voltage and current output. A 2×4 arrangement producing roughly 80-100V works well with many residential inverters, while the parallel strings provide redundancy if one string underperforms. The system feeds excess generation back to the utility grid, earning credits through net metering programs.
Off-grid installations pair these arrays with battery banks and charge controllers. The series-parallel design allows voltage matching to common 24V or 48V battery systems while delivering sufficient charging current. Homeowners can later expand the array by adding matching 8-panel configurations in parallel, scaling power output without redesigning the electrical architecture. This modularity makes 8-panel systems practical stepping stones toward larger residential installations.
Off-Grid and Battery-Based Systems
In off-grid installations, the 8-panel series-parallel configuration excels at battery charging by allowing precise voltage matching to battery bank requirements. A 2×4 arrangement producing 96V open-circuit voltage pairs perfectly with 48V battery systems, while a 4×2 setup at 48V open-circuit suits 24V banks, both staying within MPPT charge controller input ranges. This voltage flexibility eliminates the oversizing or underutilization common in pure series or parallel arrays. The series-parallel design also improves charge controller efficiency by delivering optimal voltage-to-current ratios, reducing conversion losses during maximum power point tracking. For battery-based systems storing 3-5 kWh daily, this configuration provides enough capacity without excessive wire gauge requirements, balancing performance with component costs in standalone power applications.
Educational and Research Applications
Universities and technical colleges regularly deploy 8-panel series-parallel arrays as hands-on teaching tools for photovoltaic system design. The manageable scale allows students to wire actual configurations, measure voltage and current at different connection points, and observe how series-parallel architecture affects system performance in real time. This practical experience bridges theoretical electrical concepts with physical installation skills.
Mose Solar collaborates with academic institutions to integrate these training arrays into renewable energy curricula. Students learn to calculate string sizing, select appropriate charge controllers and inverters, and troubleshoot common wiring errors, all fundamental competencies for aspiring PV professionals. The 8-panel configuration provides sufficient complexity to demonstrate design trade-offs while remaining safe and cost-effective for educational budgets. Research programs also use these arrays to test new module technologies, evaluate shading mitigation strategies, and collect performance data under controlled conditions.
Design Advantages and Performance Benefits
Series-parallel configurations offer strategic advantages that pure series or pure parallel arrays cannot match, making them the preferred choice for many eight-panel installations. By combining both connection methods, designers gain precise control over system voltage and current characteristics while building in resilience against common real-world challenges.
The voltage optimization achieved through series-parallel design allows installers to match inverter or charge controller input requirements without oversizing equipment or limiting panel selection. A 2×4 configuration producing roughly 80-100V suits most residential string inverters, while a 4×2 arrangement at 40-50V works well with many MPPT charge controllers. This flexibility lets you select the most efficient components for your specific application rather than forcing equipment choices based on array constraints.
Partial shading tolerance represents perhaps the most significant performance benefit. When one panel in a pure series string experiences shading, the entire string’s output drops to match the weakest panel, a phenomenon that can reduce power production by 50% or more from relatively minor shade. Series-parallel configurations limit this damage: if one panel in a 2×4 array becomes shaded, only that four-panel string suffers reduced output while the parallel string continues producing at full capacity. The system maintains roughly 50% production instead of collapsing entirely.
The hybrid approach delivers several concrete advantages:
– Balanced electrical characteristics that prevent excessive voltage or current demands on system components
– Improved partial shading performance by isolating problems to individual strings rather than the entire array
– Built-in redundancy where parallel strings provide backup if one string fails or underperforms
– Wider inverter compatibility across voltage ranges from small off-grid to residential grid-tied units
– Optimized wire sizing that balances current-carrying capacity with material costs and voltage drop considerations
System reliability improves because parallel paths create electrical redundancy. If a connection fails in one string, the other string or strings continue operating, maintaining partial power production rather than complete system shutdown. This fault tolerance proves valuable in remote installations where service calls are expensive or delayed.
The configuration also simplifies future troubleshooting and maintenance. When output drops, technicians can test each series string independently to isolate problems quickly, reducing diagnostic time compared to tracking issues through eight panels wired identically.
Installation and Safety Considerations
Installing an 8-panel series-parallel array requires strict adherence to electrical codes and safety protocols. The National Electrical Code (NEC) governs photovoltaic installations in the United States, with Article 690 providing specific requirements for solar systems. Before beginning any installation, verify local permitting requirements and consider hiring a licensed electrician if you lack experience with high-voltage DC systems.
Proper grounding is non-negotiable. Ground all metal mounting hardware, module frames, and equipment grounding conductors according to NEC 690.43. Series-parallel configurations create multiple current paths, making equipment grounding critical for preventing shock hazards and ensuring protective devices function correctly during faults. Use listed grounding clips or attachments specified by the module manufacturer.
Every installation must include readily accessible disconnects. NEC 690.13 requires rapid shutdown capability, while 690.15 mandates a dedicated PV disconnect between the array and inverter. For series-parallel arrays, install properly rated fuses or circuit breakers on each parallel string to prevent reverse current flow if one string fails or becomes shaded. Size overcurrent protection devices according to the module’s maximum series fuse rating listed on its datasheet.
Wire sizing directly impacts safety and performance. Calculate wire gauge based on maximum circuit current multiplied by 1.25 (continuous duty factor per NEC 690.8), factoring in temperature correction and conduit fill derating. Undersized conductors create voltage drop, efficiency losses, and fire hazards. Use sunlight-resistant, rated conductors (typically USE-2 or PV wire) for all exposed outdoor wiring.
Never work on energized arrays without proper personal protective equipment. Even small residential arrays generate lethal voltages. Cover panels completely during installation to minimize shock risk, verify all connections before exposing modules to sunlight, and use insulated tools rated for DC voltage levels present in your specific configuration.
Frequently Asked Questions
How much total power can an 8-panel series-parallel array produce?
Total power output depends on individual panel wattage and remains constant regardless of series-parallel configuration. An array of eight 400W panels produces 3,200W peak power whether wired 2×4 or 4×2, though voltage and current characteristics differ between configurations.
Which configuration works better for partial shading, 2×4 or 4×2?
The 4×2 configuration (four parallel strings of two panels) typically handles partial shading better because shaded panels affect fewer modules per string, and parallel connections provide alternative current paths. In a 2×4 arrangement, shading one panel impacts the entire four-panel string’s output more severely.
How do I select the right inverter for my 8-panel configuration?
Match the inverter’s input voltage range to your array’s output voltage and ensure its power rating exceeds your total panel wattage by 15-25%. A 2×4 configuration produces higher voltage requiring a different inverter specification than a 4×2 setup, so confirm compatibility before purchase.
Can I expand an 8-panel series-parallel system later?
Yes, but you must maintain voltage and current balance across parallel strings and ensure your charge controller or inverter can handle the increased power. Adding panels requires matching the existing configuration pattern and verifying that all system components remain within rated specifications.
What causes voltage imbalance in series-parallel arrays?
Voltage imbalance typically results from mismatched panel specifications, uneven shading across strings, or degradation differences between modules. Using panels with identical electrical characteristics and ensuring uniform installation conditions prevents most balance issues.
Do I need special equipment to wire 8 panels in series-parallel?
You need a combiner box to join parallel strings safely, appropriately rated fuses or circuit breakers for each string, proper gauge wire sized for your current levels, and MC4 connectors for secure panel connections. A charge controller or inverter compatible with your voltage and current specifications completes the essential equipment list.
Understanding these configuration fundamentals becomes clearer when you trace the complete journey from panel idea to installation where electrical design decisions intersect with manufacturing realities and site-specific constraints. The choice between 2×4 and 4×2 arrangements isn’t purely theoretical, it affects wire sizing, conduit requirements, combiner box specifications, and safety disconnect placement throughout your project development timeline.
When troubleshooting underperformance in series-parallel systems, start by measuring voltage across each string independently. A string producing significantly lower voltage than expected indicates a failed panel, poor connection, or shading issue within that series chain. Current measurements at the combiner box reveal whether parallel strings contribute equally, unequal currents suggest mismatched panels or localized problems. Most configuration issues stem from improper wire terminations, inadequate fusing, or attempting to parallel strings with different voltage outputs, all preventable through careful design and installation practices aligned with NEC Article 690 requirements.
Understanding series-parallel configurations represents a foundational skill for anyone pursuing a career in photovoltaic system design. The 8-panel array serves as an ideal learning platform, small enough to grasp intuitively, yet complex enough to demonstrate the core electrical principles that scale to commercial installations. Whether you choose a 2×4 high-voltage configuration for inverter efficiency or a 4×2 arrangement for shading resilience, your decision directly impacts system performance, safety, and long-term reliability.
These configurations aren’t abstract theory. They’re practical solutions to real-world design constraints: limited roof space, specific voltage requirements, budget considerations, and site conditions. Mastering the trade-offs between voltage and current, understanding component selection, and recognizing when to prioritize redundancy over simplicity, these are the competencies that distinguish competent installers from true solar professionals.
